Description

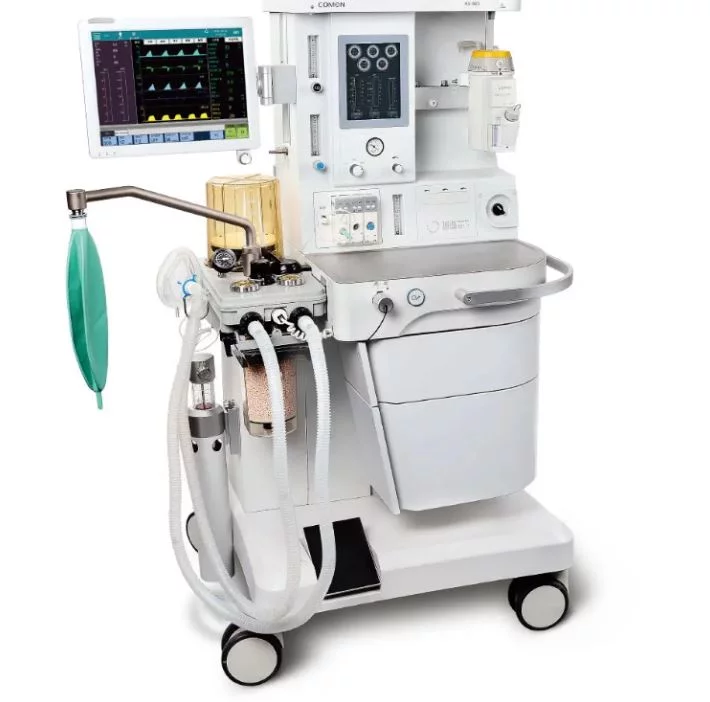

Anesthesia machine Comen AX-900 forms an important part of anesthesia quality control. Soda lime depletion pre-warning, anesthetic consumption management, parameter setting review mechanism, forgotten operation reminder. Every detail promotes more standardized anesthesia operations.Independent fresh gas control platform: like a ventilator, it supports direct control of oxygen concentration; optimal flow indicator guides the completion of low flow and minimal flow anesthesia.

• Extensive anesthesia support functions that greatly expand the applicability of the anesthesia machine:
• Optional module: support upgrading to EtCO2, O2, AG, BIS and other anesthesia monitoring.
• Auxiliary Common Gas Outlet (ACGO): support pediatric semi-open ventilation.
• Auxiliary oxygen supply: support preoperative oxygen inhalation, high-pressure oxygen source, supports jet ventilator.
• Anesthetic Gas Scavenging System (AGSS): better protect health care workers from exhaust gases.
• Negative pressure suction system supports airway suction and other operations.
• Display : 15″ +8 ” TFT Touch screen
• Resolution : 1024*768
• Dimensions (mm) : 689*800*1400
• Net weight/Kg :128
• Gross weight/Kg : 210
• Ramp length (mm) :750
• Baterry : 7000mAh 2h
• Patient : Infant / Adult
• Anesthesia operation : Open circuit deschis / Semi-closed circuit / Closed circuit
• Ventilation mode : VCV/VC ,PCV/VPC ,PSV/CPAP, PRVC ,Manual and automatic ventilation
• Optional ventilation mode : SIMV-PRVC, PSVPro
• Ventilation criterion: : Timekeeping / Volumetric / Barometric
• Oxygen socket connection :Electronic selection
• Ventilation : Full electronic control system
• Air socket connection : Electronic selection
