Features :

• Excellent mobility

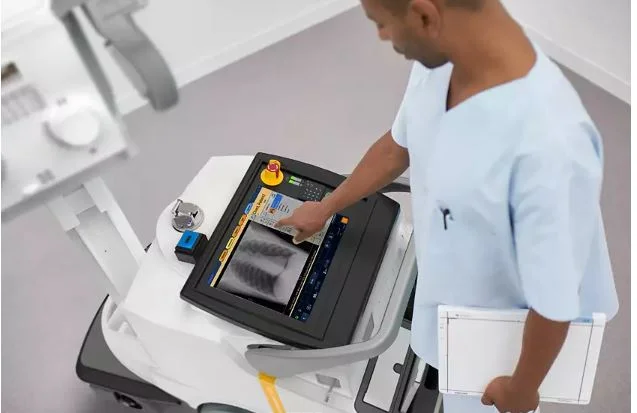

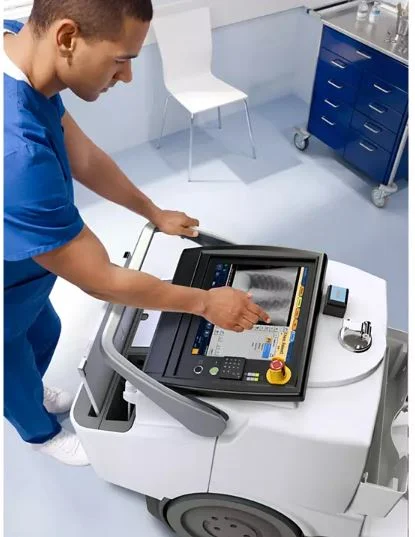

• Seamless workflow
• Outstanding image quality : high contrast images are possible on the system (without a grid) using Sky Plate detectors and Sky Flow Plus technology. UNIQUE 2 second generation multi-resolution image processing and a powerful 40Kw generator help attain quality images for a broad variety of patient types and support diagnostic confidence.
• Thin and lightweight detector :SkyPlate compact, wireless, portable detectors offer superb image resolution and sensitivity with excellent dose efficiency to the system. They are perfect for free exposures that challenge fixed detectors such as angulated projections and are available in small (1.6kg, 3.5lbs.), and large (2.8kg, 6.2lbs.) sizes.

Specifications :

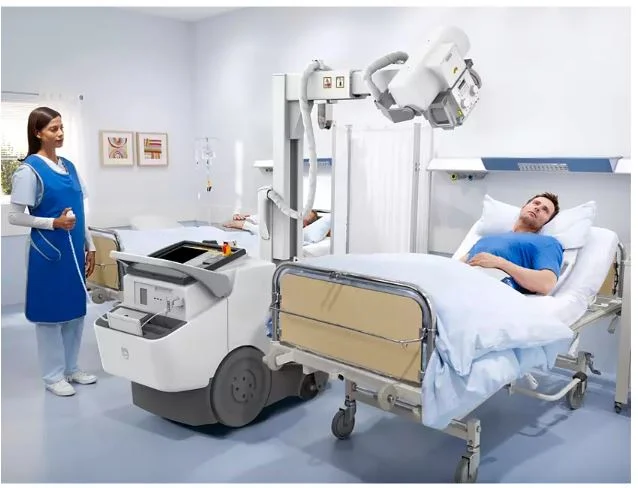

• Type       :   Mobile X-ray unit with sliding Telescopic column X-ray tube arm and wireless portable detector
• Dimensions (l x w x h) : 1382 mm x 670 mm x 1330 mm (54.4″ x 26.4″ x 52.4″) in parking position
• Wheel base length : 600 mm (23.6″)
• Motorization : 5km/h (3.1mph) in parking position|1.6km/h (1mph) not in parking position|2.5km/h (1.6mph) backwards
• Focal point distance from floor : sliding column: 53 to 202 cm (20.9″ to 79.5″)
• Focal point distance from column : max: 1242 mm (49”) min: 702 mm (27.6”)
• Tube column rotation  : ±317°
• Batteries : Separate batteries for drive and generator control
• Power for charging : single phase 100/110/220/230 VAC; ± 10%

SkyPlate wireless portable detectors  :

• Type : Digital Cesium lodide (CsI) flat detector
• detector sizes : small: 24 cm x 30 cm (10”x12”) approx , large: 35 cm x 43 cm (14”x17”) approx
• image matrix size : small: 1920 x 1500 pixel large: 2330 x 2846 pixel
• maximum patient weight : 100 Kg (220 lb) for punctual load (weight distributed over the surface of a 4 cm diameter disk) /
                                                    300 Kg (661 lb) for distributed load (weight distributed over the complete detector surface)
